>	xphug:= [ diff(theta(t),t) = ( v(t)^2 - cos(theta(t))) / v(t),         diff(v(t),t)     = -sin(theta(t)) - R*v(t)^2 ,         diff(x(t),t)     = v(t)*cos(theta(t)),         diff(y(t),t)     = v(t)*sin(theta(t))]; with(DETools):with(plots):



(1)



>

bisector := proc( f, low, high, epsilon)   local mid, lo, hi;   lo := evalf(low);   hi := evalf(high);   if (f(lo)>0) then error("f not neg at lo=",lo, "f=",f(lo)); fi;   if (f(hi)<0) then error("f not pos at hi=",hi, "f=",f(hi)); fi;   mid := evalf((lo+hi)/2);   while ( abs(f(mid))>epsilon) do      if ( f(mid) > 0) then         hi:= mid;      else         lo:= mid;      fi;      mid := (lo+hi)/2; print( [lo, hi], mid, "f(mid)=", f(mid));   od;   return(mid); end:



>

R:=0.3;



(2)



>	sol:=dsolve({op(xphug), theta(0)=0, v(0)=2, x(0)=0, y(0)=1},                numeric,  range=0..10,output=procedurelist);



(3)



>

sol(4);



(4)



>

sol(5);



(5)



>	saul:=dsolve({op(xphug), theta(0)=0, v(0)=2, x(0)=0, y(0)=1},                numeric,  range=0..10, output=listprocedure);



(6)



>	yt:=saul[5];



(7)



>

yt(5);



(8)



>

sol(4);



(9)



>

saul(4);



(10)



>	sol[5](4);



(11)



>	saul[5](4);



(12)

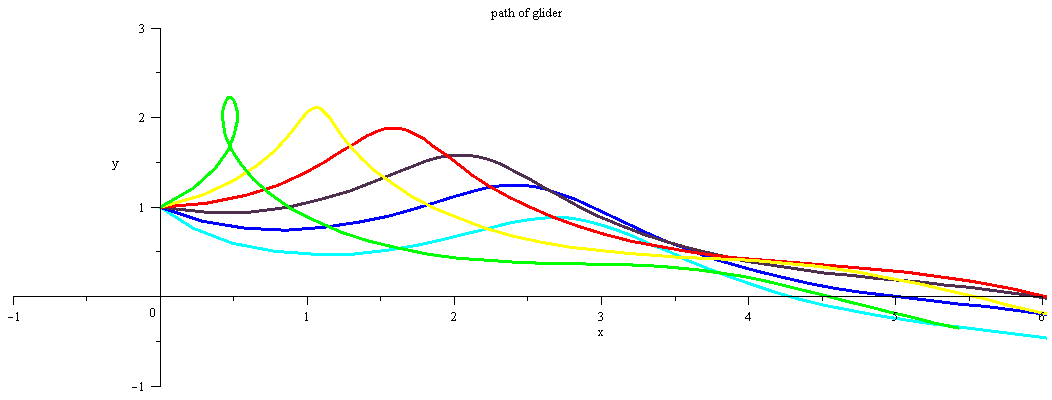

>	DEplot(xphug, [ theta(t), v(t), x(t), y(t) ], t=0..8,



>	[seq([theta(0)=(Pi*(i/10)), v(0)=2, x(0)=0, y(0)=1 ], i=-3..2)],



>	theta=-Pi/2..3*Pi, v=0..3, x=-1..6, y=-1..3,         scene=[x,y], title="path of glider",



>	linecolor=[cyan,blue,violet,red,yellow,green]);



>



>	moses:=dsolve({op(xphug), theta(0)=-Pi/5, v(0)=2, x(0)=0, y(0)=1},                numeric,  range=0..10, output=listprocedure);



(13)



>	moses[5](8);



(14)



>	moses[5](6);



(15)



>	rhs(roses=red);



(16)



>	rhs(moses[5](5));



(17)

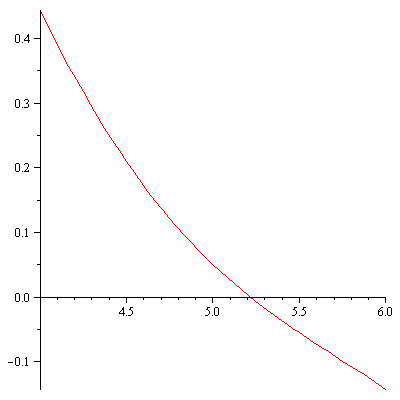

>	plot(rhs(moses[5](t)),t=4..6);



>	rhs(moses[5](5.22));



(18)



>	rhs(moses[5](5.21));



(19)



>	bisector(t->rhs(moses[5](t)), 5.22, 5.21, .000001);





















	(20)



>	moses[4](5.215869142);



(21)



>	xphug:= [ diff(theta(t),t) = piecewise(y(t)>0,( v(t)^2 - cos(theta(t))) / v(t),0),         diff(v(t),t)     = piecewise(y(t)>0,-sin(theta(t)) - R*v(t)^2 ,0),         diff(x(t),t)     = piecewise(y(t)>0, v(t)*cos(theta(t)), 0),         diff(y(t),t)     = piecewise(y(t)>0, v(t)*sin(theta(t)), 0)];



(22)



>	crash:=dsolve({op(xphug), theta(0)=-Pi/5, v(0)=2, x(0)=0, y(0)=1},                numeric,  range=0..10, output=listprocedure);



(23)



>	crash[5](8);



(24)



>

crash(8);



(25)



>	splat:=Theta->dsolve({op(xphug), theta(0)=Theta, v(0)=2, x(0)=0, y(0)=1},                numeric,  range=0..10, output=listprocedure)(10);



(26)



>	splat(-Pi/5);



(27)



>	splat(-Pi/5+.01);



(28)



>
