>	read("/home/scott/www/mat331.spr08/problems/lsq_data.txt");



defined line_pts(), bad_line_pts(), quadratic_pts(), cubic_pts(), and circle_pts()



>	cdat:=circle_pts():

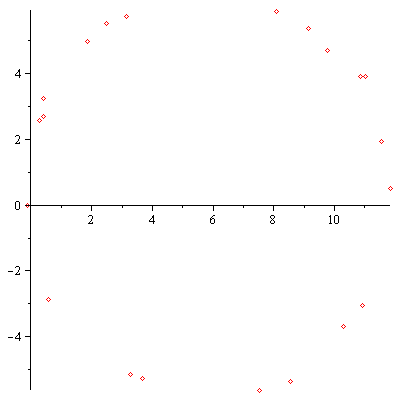

>	plot(cdat,style=point);



Idea:  Let's define the distance from [ to circle centered (a,b), radius r by  ( (x-a)

>	epsilon:=(a,b,r,pt) -> (a-pt[1])^2 + (b-pt[2])^2 - r^2;



(1)



Now minimize sums of squares of that.

>	E:=(a,b,r,data) -> sum( (epsilon(a,b,r,data[i])^2), i=1..nops(data));



(2)



>	E(6,0,7,cdat);



(3)



>	E(6,0,6,cdat);



(4)



>	diff(E(a,b,r,cdat),a);



(5)



>	crits:=solve( { diff(E(a,b,r,cdat),a)=0, diff(E(a,b,r,cdat),b)=0, diff(E(a,b,r,cdat),r)=0},        {a,b,r});



(6)



The 6th answer is reasonable, the others are crazy.

>

crits[6];



(7)



>	subs(crits[6], r);



(8)



>	subs(crits[4], r);



(9)



>	select( h -> subs(h,r) > 0, crits);



Error, selecting function must return true or false



>	select( h -> if (subs(h,r) > 0) then true else false fi, crits);



Error, (in unknown) cannot determine if this expression is true or false: 0 < r



>	checkit:= s-> if (subs(s,r) > 0) then true else false fi;



(10)



>	checkit(crits[3]);



(11)



>	select( checkit, {crits});



(12)



>	mysol:=op(select( checkit, {crits}));



(13)



>	mycircle:= subs(mysol, [a+r*cos(t),b+r*sin(t)]);



(14)



>	mycircle:= subs(mysol, [a+r*cos(t),b+r*sin(t), t=0..2*Pi]);



(15)

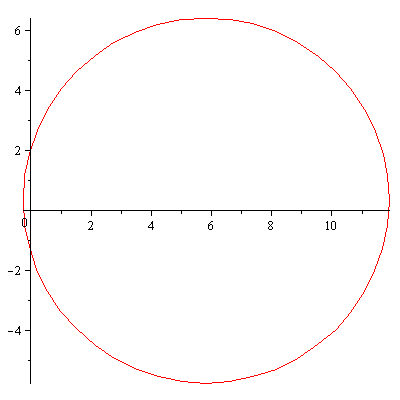

>	plot(mycircle,scaling=constrained);

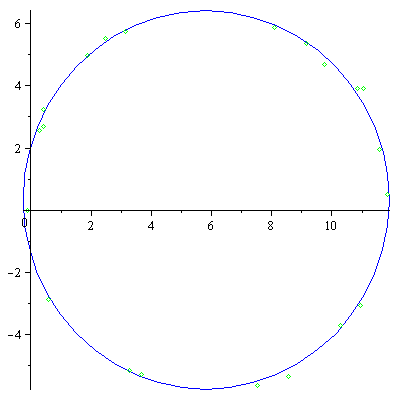

>	plots[display]( [plot(mycircle,color=blue), plot(cdat,style=point,color=green)]);



>
