08-02-21.mw

> data := [[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733,


> 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510\


> 235158, 4.569017281], [.955599370, 4.097468044], [-5.712634201, 9.544519402],


> [.691425053, 3.830846574], [-6.708865618, 9.962202300], [3.761176009, 1.978739\


> 404], [3.172070319, .432025264], [-2.684165704, 7.561362842], [-4.250626903, 8\


> .100249035], [.201116234, 3.609631780], [5.514142588, -.466174813], [4.7227219\


> 45, 1.119994312], [7.636264182, -3.679228223], [-4.873069134, 7.999031928], [-\


> 5.019405423, 8.742503689], [4.811048112, -.901298665], [-.504420785, 6.1024543\


> 05], [6.576501459, -3.495854902], [-.796916715, 3.623549343], [1.325774350, 2.\


> 186174499]];


>


[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
[[6.399555221, -2.975032259], [.972268069, 4.644979231], [-.174930733, 2.313538498], [-5.073540384, 9.514984401], [6.893861527, -1.071097006], [1.510235158, 4.569017281], [.955599370, 4.097468044], [-...
(1)

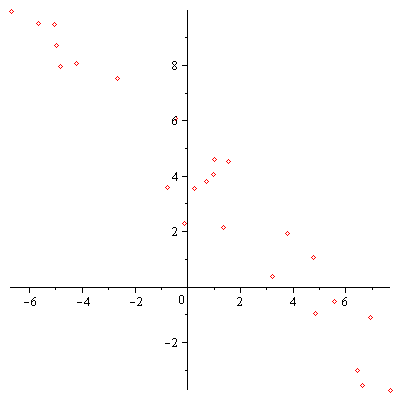

> plot(data,style=point);


Plot_2d


>


> read( "/home/scott/www/mat331.spr08/problems/proj1data/sandyego.txt");


[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
[[7.390980357, -9.692462929], [-5.596965213, -27.92051809], [-2.337381483, -21.84581610], [-8.031811636, -25.08619332], [3.307567556, -18.31371140], [7.397671015, -10.12944913], [5.323717488, -14.1581...
(2)

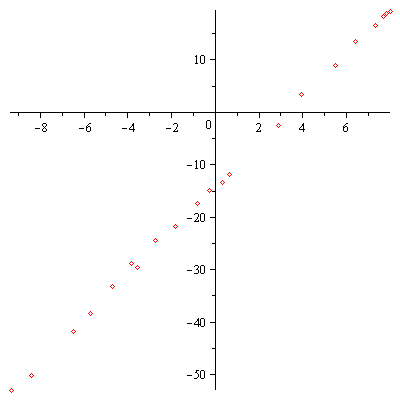

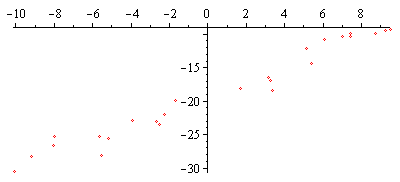

> plot(data,style=point);


Plot_2d


> data2:= [ seq( [ data[i][1], data[i][2]+10 ], i=1..nops(data) )]:

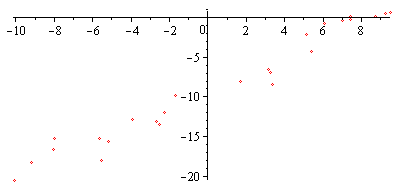

> plot(data2,style=point);


Plot_2d


> save(data2, "/tmp/data2.txt");  # writes out the values of data2 to /tmp/data2.txt as a maple command.


>


>


What directory am I in?

> currentdir();


/mt/centerport/home/scott/www/mat331.spr08/daily (3)


Let's change to another.

> currentdir("/home/scott/www/mat331.spr08/problems/");


/mt/centerport/home/scott/www/mat331.spr08/daily (4)


> currentdir();


/mt/centerport/home/scott/www/mat331.spr08/problems (5)


> currentdir("/home/scott/www/mat331.spr08/problems/");
read("lsq_data.txt");




/mt/centerport/home/scott/www/mat331.spr08/problems
defined line_pts(), bad_line_pts(), quadratic_pts(), cubic_pts(), and circle_pts()


> plot(line_pts(), style=point);


Plot_2d

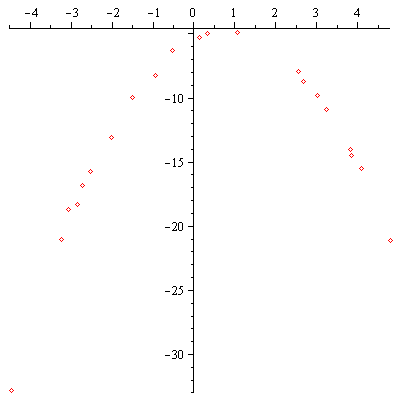

> qdata := quadratic_pts(): plot(qdata, style=point);


Plot_2d


> f:=x->x^3+3;


proc (x) options operator, arrow; `+`(`*`(`^`(x, 3)), 3) end proc (6)


> f(2);


11 (7)


> g:=proc(x)
 x^3+3;
end;


proc (x) `+`(`*`(`^`(x, 3)), 3) end proc (8)


> g(2);


11 (9)


> h:=proc(x)
 y := x^3;
 y+3;
end;




Warning, `y` is implicitly declared local to procedure `h`
proc (x) local y; `:=`(y, `*`(`^`(x, 3))); `+`(y, 3) end proc (10)


> h(2);


11 (11)


Let's try to fit a quadratic of the form Typesetting:-mrow(Typesetting:-mi(It will be way fun.



But let's use a more general procedure or "macro" (except it isn't a macro) or subroutine or whatever.

> fitquad := proc( data )
 local f,dis,ans,i,a,b,c;
 f:= x-> a*x^2 + b*x + c;
   # distance is sum of squares of f(x)-y
 dis:= sum( (f(data[i][1]) - data[i][2])^2 , i=1..nops(data));
 ans:= solve( { diff(dis,a)=0, diff(dis,b)=0, diff(dis,c)=0},
              {a,b,c});
end:


> myfit:=fitquad(data);


{c = -19.59879991, a = 0.1453303559e-1, b = 1.084668458} (12)


> fitquad := proc( data )
 local f,dis,ans,i,a,b,c;
 f:= x-> a*x^2 + b*x + c;
   # distance is sum of squares of f(x)-y
 dis:= sum( (f(data[i][1]) - data[i][2])^2 , i=1..nops(data));
 ans:= solve( { diff(dis,a)=0, diff(dis,b)=0, diff(dis,c)=0},
              {a,b,c});
 assign(ans);
 return(f(x));
end:


> qOfX:=fitquad(qdata);


`+`(`-`(`*`(1.005688251, `*`(`^`(x, 2)))), `*`(1.522862470, `*`(x)), `-`(5.294151272)) (13)


> qOfX(2);


`+`(`-`(`*`(1.005688251, `*`(`^`(x(2), 2)))), `*`(1.522862470, `*`(x(2))), `-`(5.294151272)) (14)


> q:=unapply(qOfX, x);


proc (x) options operator, arrow; `+`(`-`(`*`(1.005688251, `*`(`^`(x, 2)))), `*`(1.522862470, `*`(x)), `-`(5.294151272)) end proc (15)


> q(2);


-6.271179336 (16)


> q(y);


`+`(`-`(`*`(1.005688251, `*`(`^`(y, 2)))), `*`(1.522862470, `*`(y)), `-`(5.294151272)) (17)


> fitquad := proc( data )
 local f,dis,ans,i,a,b,c,q;
 f:= x-> a*x^2 + b*x + c;
   # distance is sum of squares of f(x)-y
 dis:= sum( (f(data[i][1]) - data[i][2])^2 , i=1..nops(data));
 ans:= solve( { diff(dis,a)=0, diff(dis,b)=0, diff(dis,c)=0},
              {a,b,c});
 assign(ans);
 q:=unapply(f(x),x);
 return(eval(q));
end:


>


> q:=fitquad(qdata);


proc (x) options operator, arrow; `+`(`-`(`*`(1.005688251, `*`(`^`(x, 2)))), `*`(1.522862470, `*`(x)), `-`(5.294151272)) end proc (18)

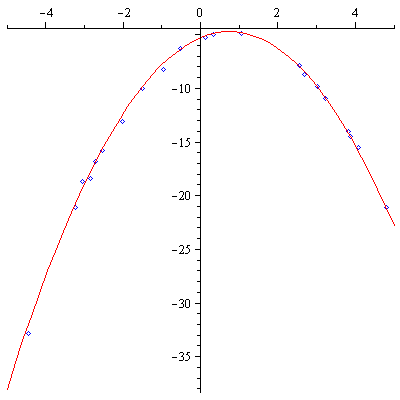

> plots[display]({plot(qdata,style=point,color=blue),plot(q(x),x=-5..5)});


Plot_2d


>
