08-04-01.mw

 > R:=0.3: xphug:= [ diff(theta(t),t) = ( v(t)^2 - cos(theta(t))) / v(t),         diff(v(t),t)     = -sin(theta(t)) - R*v(t)^2 ,         diff(x(t),t)     = v(t)*cos(theta(t)),         diff(y(t),t)     = v(t)*sin(theta(t))];

 (1)

 > with(DETools):with(plots):

 >

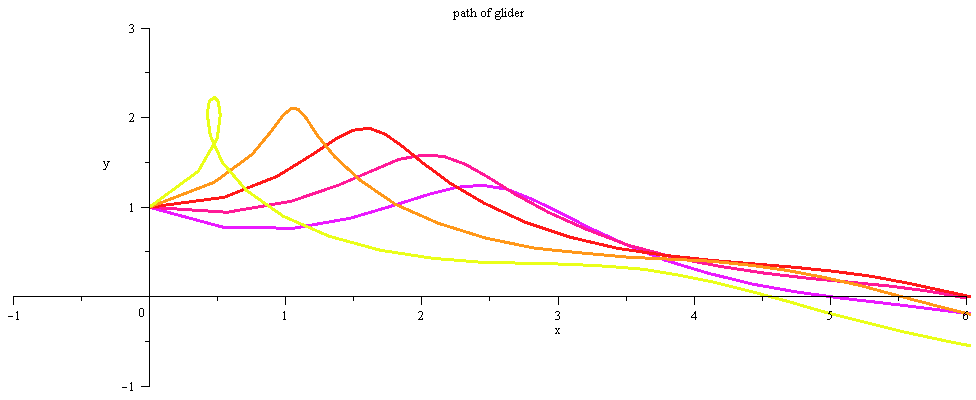

 > DEplot(xphug, [ theta(t), v(t), x(t), y(t) ], t=0..15,

 > [seq([theta(0)=(Pi*(i/10)), v(0)=2, x(0)=0, y(0)=1 ], i=-2..2)],

 > theta=-Pi/2..3*Pi, v=0..3, x=-1..6, y=-1..3,         scene=[x,y], title="path of glider",

 > linecolor=[seq(COLOR(HUE,i/11),i=-2..2)]);

 >

 > R:=0.3: motorphug:= [ diff(theta(t),t) = ( v(t)^2 - cos(theta(t))) / v(t),         diff(v(t),t)     = -sin(theta(t)) - R*v(t)^2 +k,         diff(x(t),t)     = v(t)*cos(theta(t)),         diff(y(t),t)     = v(t)*sin(theta(t))];

 (2)

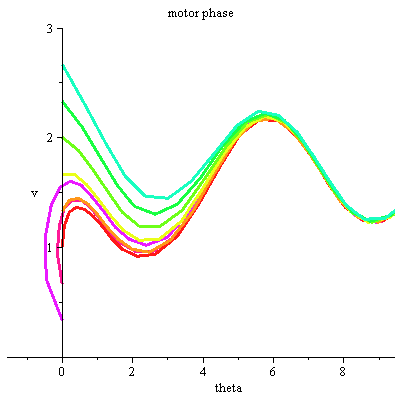

 > k:=1;DEplot(motorphug, [ theta(t), v(t), x(t), y(t) ], t=0..15,

 > [seq([theta(0)=0, v(0)=1+i/3, x(0)=0, y(0)=1 ], i=-5..5)],

 > theta=-Pi/2..3*Pi, v=0..3, x=-1..6, y=-1..3,         scene=[theta,v], title="motor phase",

 > linecolor=[seq(COLOR(HUE,i/11),i=-5..5)]);

 >

 Warning, plot may be incomplete, the following errors(s) were issued:   cannot evaluate the solution past the initial point, problem may be complex, initially singular or improperly set up

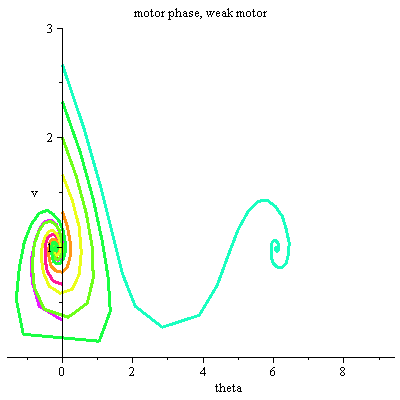

 > k:=0.1;DEplot(motorphug, [ theta(t), v(t), x(t), y(t) ], t=0..15,

 > [seq([theta(0)=0, v(0)=1+i/3, x(0)=0, y(0)=1 ], i=-5..5)],

 > theta=-Pi/2..3*Pi, v=0..3, x=-1..6, y=-1..3,         scene=[theta,v], title="motor phase, weak motor",

 > linecolor=[seq(COLOR(HUE,i/11),i=-5..5)]);

 >

 Warning, plot may be incomplete, the following errors(s) were issued:   cannot evaluate the solution past the initial point, problem may be complex, initially singular or improperly set up

 > ?

 > sol:=dsolve({op(xphug), theta(0)=0, v(0)=2, x(0)=0, y(0)=1},                numeric,  range=0..1);

 (3)

 > sol(5);

 (4)

 > sol(6);

 (5)

 > sol(7);

 (6)

 > sol(8);

 (7)

 > sol(7.5);

 (8)

 > sol(7.25);

 (9)

 > sol(7.125);

 (10)

 > sol(7.1);

 (11)

 > sol(7.05);

 (12)

 > yt:= T->subs(sol(T), y(t));

 (13)

 > yt(7.02);

 (14)

 > bisector := proc( f, low, high, epsilon)   local mid, lo, hi;   lo := low;   hi := high;   mid := (lo+hi)/2;   while ( abs(f(mid))>epsilon) do      if ( f(mid) > 0) then         hi:= mid;      else         lo:= mid;      fi;      mid := (lo+hi)/2;   od;   return(mid); end:

let's test it for something we know the answer.

 > bisector(2*x-1, 0, 1, 0.001);

 Error, (in bisector) cannot determine if this expression is true or false: 0.1e-2 < abs(2*x(1/2)-1)

 > bisector(2*x-1, 0, 5, 0.001);

 Error, (in bisector) cannot determine if this expression is true or false: 0.1e-2 < abs(2*x(5/2)-1)

 > bisector(x->2*x-1, 0, 5, 0.001);

 (15)

 > evalf(%);

 (16)

Ramon prefers decimals

 > bisector := proc( f, low, high, epsilon)   local mid, lo, hi;   lo := evalf(low);   hi := evalf(high);   mid := evalf((lo+hi)/2);   while ( abs(f(mid))>epsilon) do      if ( f(mid) > 0) then         hi:= mid;      else         lo:= mid;      fi;      mid := (lo+hi)/2;   od;   return(mid); end:

 > bisector(x->x^2-1, 0, 5, 0.001);

 (17)

 > bisector(yt, 8, 7, 0.00001);

 (18)

 > yt(7.081542969);

 (19)

 > bisector := proc( f, low, high, epsilon)   local mid, lo, hi;   lo := evalf(low);   hi := evalf(high);   mid := evalf((lo+hi)/2);   while ( abs(f(mid))>epsilon) do      if ( f(mid) > 0) then         hi:= mid;      else         lo:= mid;      fi;      mid := (lo+hi)/2; print( [lo, hi], mid, "f(mid)=", f(mid));   od;   return(mid); end:

 > bisector(yt, 8, 7, 0.001);

 (20)

Don't try this at home, kids!
it runs forever and is hard to interrupt.

 > # bisector(yt, 7, 8, 0.001);

 Warning,  computation interrupted

 > bisector := proc( f, low, high, epsilon)   local mid, lo, hi;   lo := evalf(low);   hi := evalf(high);   if (abs(f(lo))>0) then error("f not neg at lo=",lo); fi;   if (abs(f(hi))>0) then error("f not pos at hi=",hi); fi;   mid := evalf((lo+hi)/2);   while ( abs(f(mid))>epsilon) do      if ( f(mid) > 0) then         hi:= mid;      else         lo:= mid;      fi;      mid := (lo+hi)/2; print( [lo, hi], mid, "f(mid)=", f(mid));   od;   return(mid); end:

 > bisector(yt, 7, 8, 0.001);

 Error, (in bisector) f not neg at lo=, 7.

 >
