The Coast and Geodetic Survey Tide Predicting Machine No. 2

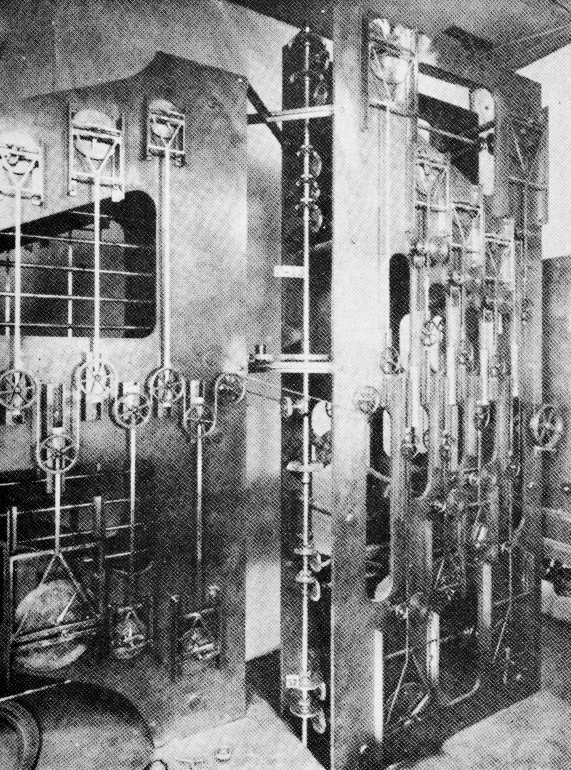

Side view of the Tide Predicting Machine No. 2.
Fig. 27 from
Schureman

This side view shows some of the pulleys and the cams designed to convert rotational motion of the gears into vertical motion of the pulleys.
