Fitting a line to data

Here we shall discuss using maple to fit a line to some data, using least-squares.

First, lets type in our data to fit

pts := [ [0,0.25], [1/2,2], [1,4], [5,8], [6,10] ];
              pts := [[0, .25], [1/2, 2], [1, 4], [5, 8], [6, 10]]

plot(pts,style=point, axes=boxed);

We could use maple's built-in regression package to find the answer, but that wouldn't help much in explaining what's going on. Let's do it anyway, though.

Note that the least-squares package wants the x values and y values in separate lists, so we have to adjust them a bit.

fit[leastsquare[[x,y]]]([[ pts[i][1] $ i=1..5 ], [pts[i][2] $i=1..5]]);
                         y = 1.271370968 + 1.431451613 x

Let's do the same thing ourselves, "by hand".

First, lets define the "error functional" which gives us the distance from a line (actually, its coefficients) to the data.

 F := (m,b) -> sum(  (  (m*pts[i][1] + b)  - pts[i][2] ) ^2,

                              \                                 2
               F := (m,b) ->   )   (m pts[i][1] + b - pts[i][2])
                             i = 1

For example, if we guessed that the line was y= 2x + 1, we could compute its distance:


but we see that decreasing the slope and increasing the intercept gives a better fit:


Now we want to minimize this quantity. Note that maple will happily compute the partial derivatives for us.

 diff ( F(m,b), m);
                              249/2 m + 25 b - 210

So, we can ask maple to solve, setting each of the partials to 0.

 solve( { diff ( F(m,b), m)=0  , diff ( F(m,b), b) = 0},
              {m, b} );
                       {b = 1.271370968, m = 1.431451613}

Not surprisingly, this was the same solution we got before. If we now want to use this value of m and b without retyping it, we can use maple's assign command to let b and m be constants with the values given.

Maple just does the assignment, but doesn't say anything...
"When I have nothing to say, my lips are sealed. Say something once, why say it again?"

But, m and b are now constants, with values of about 1.43 and 1.27, respectively.


If we want, we can compute the distance of this line to the points...

 F(m, b);

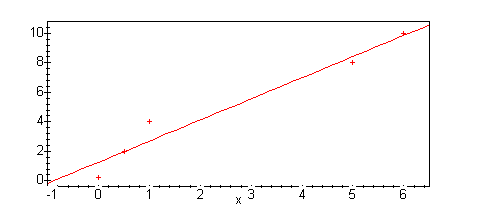

To get an idea of how good our fit is, we can make a plot with the data points and the line on the same graph. We first need to load the 'plots' package, so we can use 'display'.


We can now compute both plots, and use display to show them together. Note that we use a : to supress the output of the plot calls.

lplot := plot(m*x+ b, x=-1..6.5, axes=boxed):
pplot:= plot(pts, style=point):
display({lplot, pplot});

One minor point:
Since we defined 'm' and 'b' to be constants, we can no longer treat them as variables. For example, the statement we used before to compute the derivative of F with respect to m no longer works, since it is asking maple to compute the derivative of 2.929334677 with respect to 1.431451613. This, of course, makes no sense.

Error, wrong number (or type) of parameters in function diff

Of course, we can do this by substituting in other variables


                              249/2 n + 25 c - 210

Alternatively, we can tell maple to "forget" the previous definitions of m and b:


                                     m := m

                                     b := b


                              249/2 m + 25 b - 210
